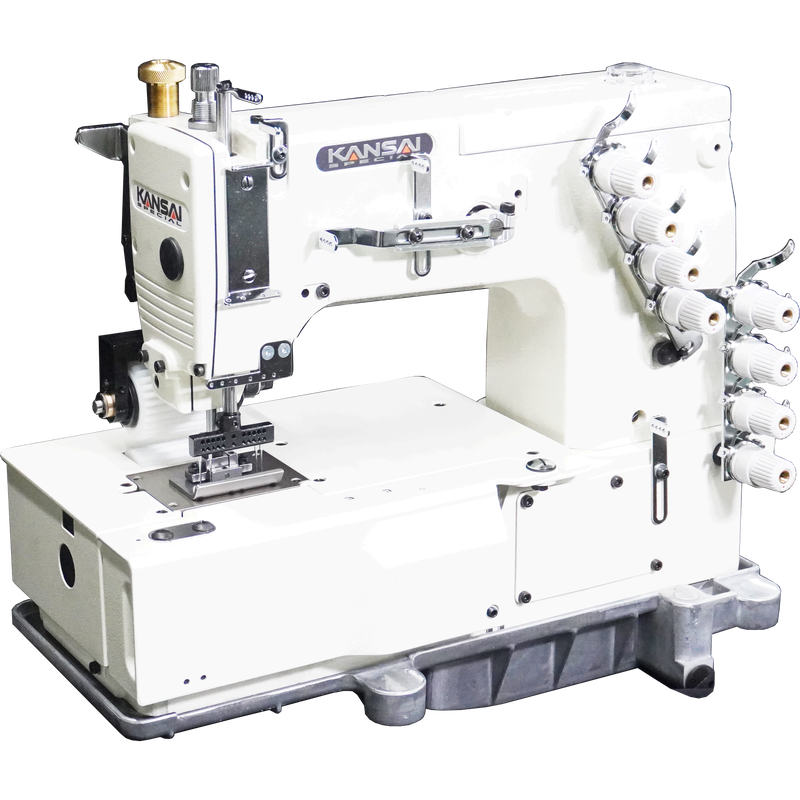

DFB1411P-XP

4 needle, multi gauge, flat bed, double chain stitch machine for plain seaming with rear puller
    Max speed 4000rpm
    Needle Type #UO x 113 14
    Stitch Length 7~17/inch
    Presser Foot Lift 10mm
    Needle Bar Stroke 34mm
    Diff.Feed Ratio –
    Gauge Size 1/8X4-1/4X2-1/8X4(1/4X1/8)
    option FL
  • Multi gage The gauge size can be freely selected by choosing the needle position (up to 38.1mm)

    Multi gage
    The gauge size can be freely selected by choosing the needle position (up to 38.1mm)
