DLR1508PR DLR1509PR

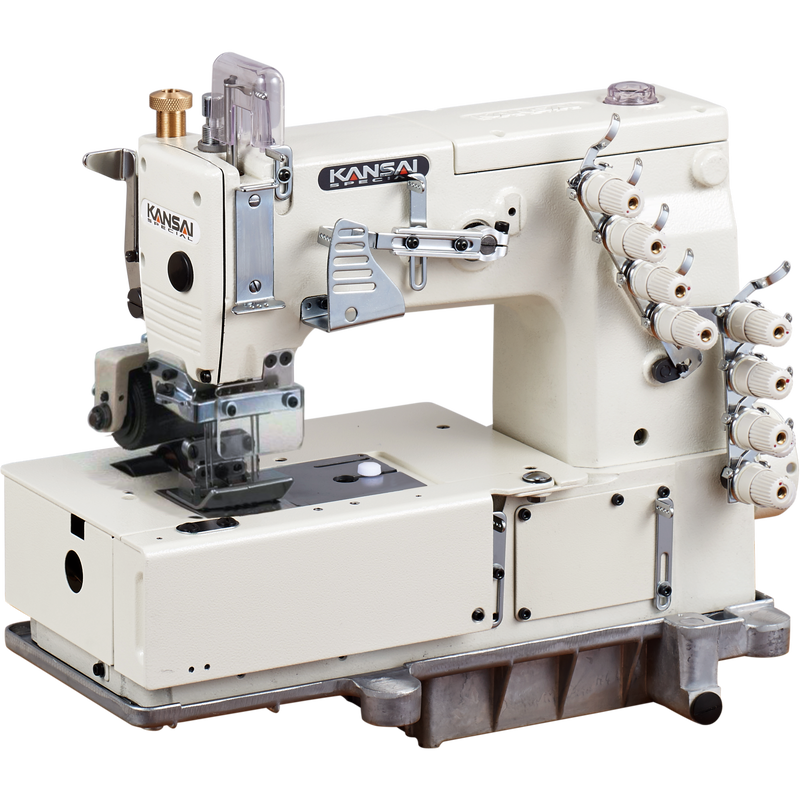

4 needle, flat bed double chain stitch machine with puller for waistbanding
    DLR1508PR DLR1509PR
    Max speed 4500rpm
    Needle Type TV x 5 #21
    Stitch Length 7~16/inch
    Presser Foot Lift 10mm
    Needle Bar Stroke 34mm
    Diff.Feed Ratio –
    Gauge Size 1/4-1-1/4 1/8-1/8-1-1/8-1/8
    option FL,TB

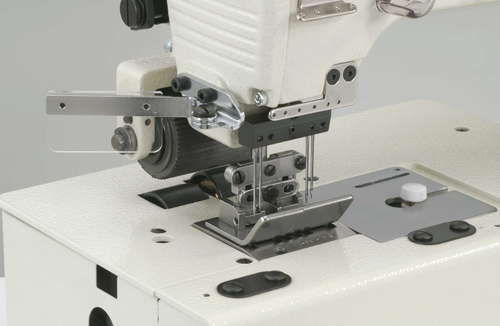

  • Independent lower puller mechanism By placing a step on the left and right puller, it is possible to reliably send a gentle curve and finish it beautifully.

    Independent lower puller mechanism
    By placing a step on the left and right puller, it is possible to reliably send a gentle curve and finish it beautifully.
