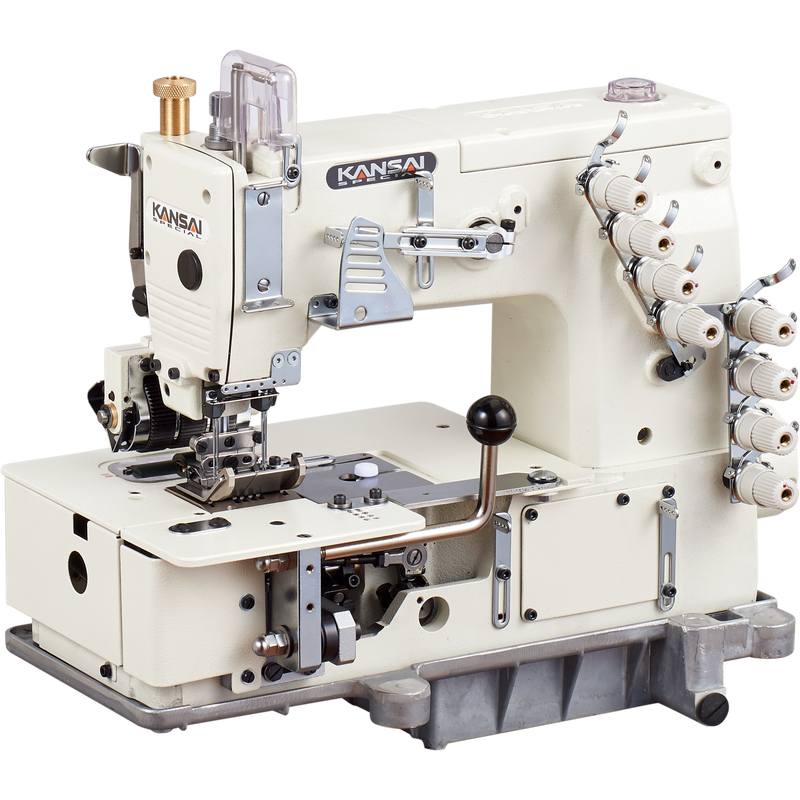

DLR1509SPF

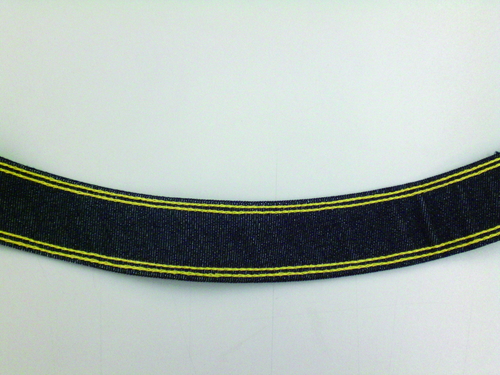

4 needle, with upper and independent lower pullers equipped with angle-adjustable mechanism double feed dog system for curved waistbanding
    Max speed 4500rpm
    Needle Type TV x 5 #21
    Stitch Length 7~16/inch
    Presser Foot Lift 10mm
    Needle Bar Stroke 34mm
    Diff.Feed Ratio –
    Gauge Size 1/8-1/8-1-1/8-1/8
    option FL

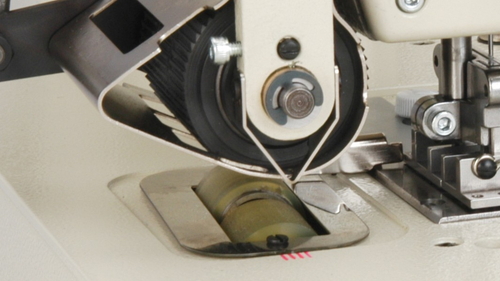

  • Adjustable Puller angle system Depending on angle of curved waistband, both upper and bottom pullers can be rotated, the indicator helps to change and fix angle of pullers

    Adjustable Puller angle system
    Depending on angle of curved waistband, both upper
    and bottom pullers can be rotated,
    the indicator helps to change and fix angle of pullers
