WFB5506P WFB5509P

6 needle, cylinder bed, double chain stitch machine, needle feed machine for waistbands with rear puller.
(5509 is multi-gauge specification)
    WFB5506P WFB5509P
    Max speed 3000rpm
    Needle Type DV x 57 #21
    Stitch Length 4~12/inch
    Presser Foot Lift 9mm
    Needle Bar Stroke 32mm
    Diff.Feed Ratio –
    Gauge Size 1/8-1/8-1-1/8-1/8 1/8×4-7/8-1/8×3
    option FL

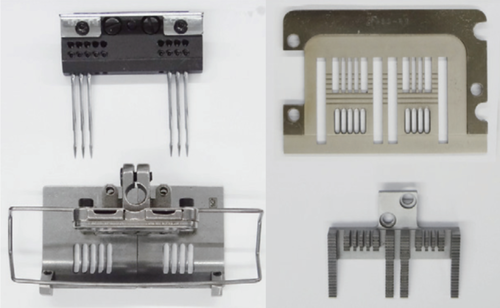

  • Multi-gauge (WFB5509) The 1/8 needle width can be freely selected and the gauge size can be changed. A single machine can handle a wide range of sewing.

    Multi-gauge (WFB5509)
    The 1/8 needle width can be freely selected and the gauge size can be changed.
    A single machine can handle a wide range of sewing.
