JJT3116GE-03XK

2 needle, 5 thread, top feed safety stitch machine for plain seaming with tractor foot
    Max speed 6300rpm
    Needle Type #DC×27 #21
    Stitch Length 1~5.0mm
    Presser Foot Lift 7mm
    Needle Bar Stroke 26mm
    Diff.Feed Ratio 0.8~1.5
    Gauge Size 5mm

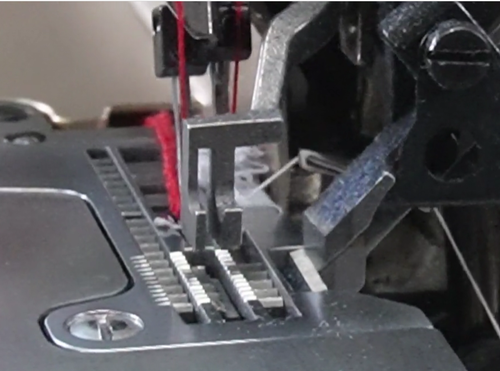

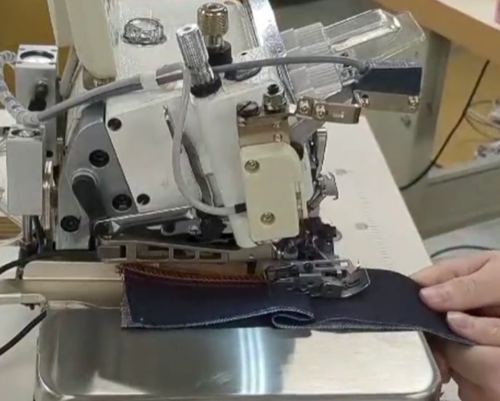

  • Tractor foot & top feed mechanism (The photo is with an ATC device.)

    Tractor foot & top feed mechanism (The photo is with an ATC device.)

  • Tractor foot & top feed mechanism (The photo is with an ATC device.)

    Tractor foot & top feed mechanism (The photo is with an ATC device.)
