KC2703-UTA,UTE KC2704-UTA,UTE

3～4 needle, feed-up-the-arm cylinder bed, top and bottom cover stitch machine.
    KC2703-UTA KC2703-UTE KC2704-UTA KC2704-UTE
    Max speed 4000rpm
    Needle TV x 7 #9~14 SM1014H #10S
    Stitch Length 1.5~5mm
    Presser Foot Lift 6mm
    Needle Bar Stroke –
    Diff.Feed Ratio 2.5~5
    Gauge Size 1/4,7/32 6mm
  • FRONT

    FRONT

  • BACK

    BACK

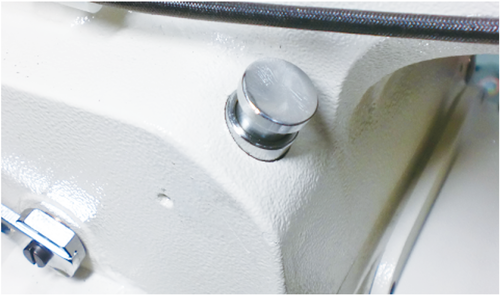

  • Stitch length can be adjusted by push button.

    Stitch length can be adjusted by push button.

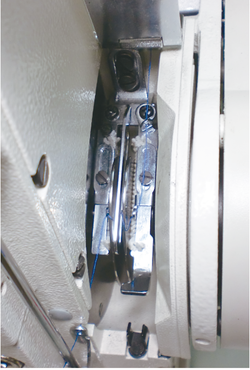

  • Exterior thread take up cam It is easy to maintainance and thread.

    Exterior thread take up cam
    It is easy to maintainance and thread.

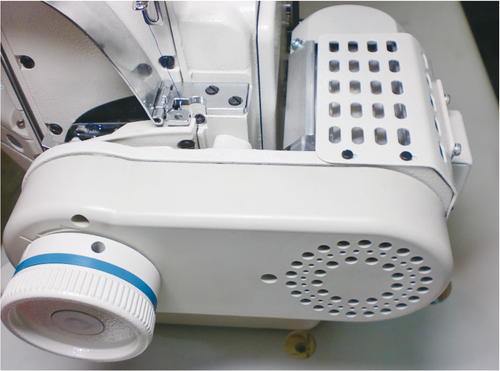

  • All KC series can be attached direct drive motor.

    All KC series can be attached direct drive motor.
