KC2803-UTA,UTE KC2804-UTA,UTE

3 ～ 4 needle, long type feed-up-the-arm cylinder bed, top and bottom cover stitch machine for hemming and covering
    KC2803-UTA KC2803-UTE KC2804-UTA KC2804-UTE
    Max speed 3500rpm
    Needle TV x 7 #9~11 SM1014H #10S
    Stitch Length 1.5~5mm
    Presser Foot Lift 6mm
    Needle Bar Stroke –
    Diff.Feed Ratio 2.5~5
    Gauge Size 1/4,7/32 6mm

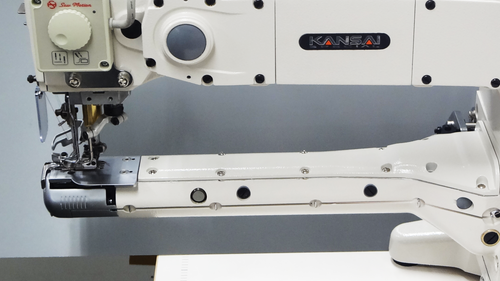

  • 420mm Long cylinder The extra-long cylinder is convenient for sewing pants or large items, improving work efficiency.

    420mm Long cylinder
    The extra-long cylinder is convenient for sewing pants or large items, improving work efficiency.

  • Stitch length can be adjusted by push button.

    Stitch length can be adjusted by push button.

  • Exterior thread take up cam It is easy to maintainance and thread.

    Exterior thread take up cam
    It is easy to maintainance and thread.

  • All KC series can be attached direct drive motor.

    All KC series can be attached direct drive motor.
