NB1425PSSM-ET-MD NB1433PSSM-ET-MD

25, 33 needle, flat bed, double chain stitch machine for shiring and smocking with metering device for looper thread
    NB1425PSSM-ET-MD NB1433PSSM-ET-MD
    Max speed 2000rpm
    Needle Type #DV X 57 14
    Stitch Length 4 ~ 18/inch
    Presser Foot Lift 8mm
    Needle Bar Stroke 34mm
    Diff.Feed Ratio 4mm（最大ﾌﾟｰﾗｰ送り）(max feed amount)
    Gauge Size 1/4 3/16

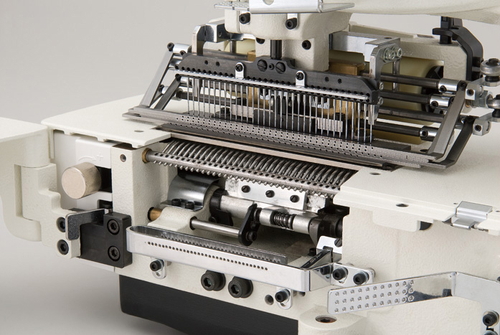

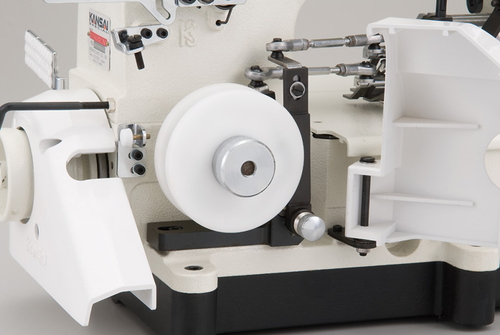

  • The cam can be easily replaced, expanding the range of combinations of the 4 stage spreader and matching decorative patterns.

    The cam can be easily replaced, expanding the range of combinations of the 4 stage spreader and matching decorative patterns.

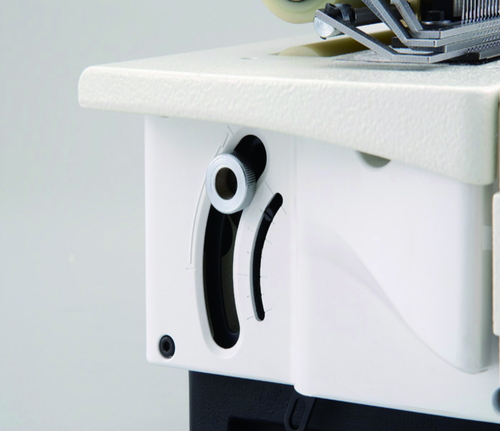

  • Partial shirring is possible by adjusting the lever.

    Partial shirring is possible by adjusting the lever.

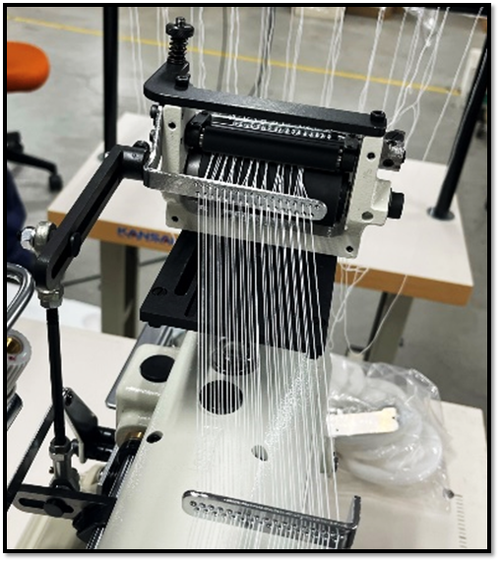

  • MD2 device(option) Tension can be applied to the elastic thread more effectively, and stable sewing is possible.

    MD2 device(option)
    Tension can be applied to the elastic thread more effectively, and stable sewing is possible.
