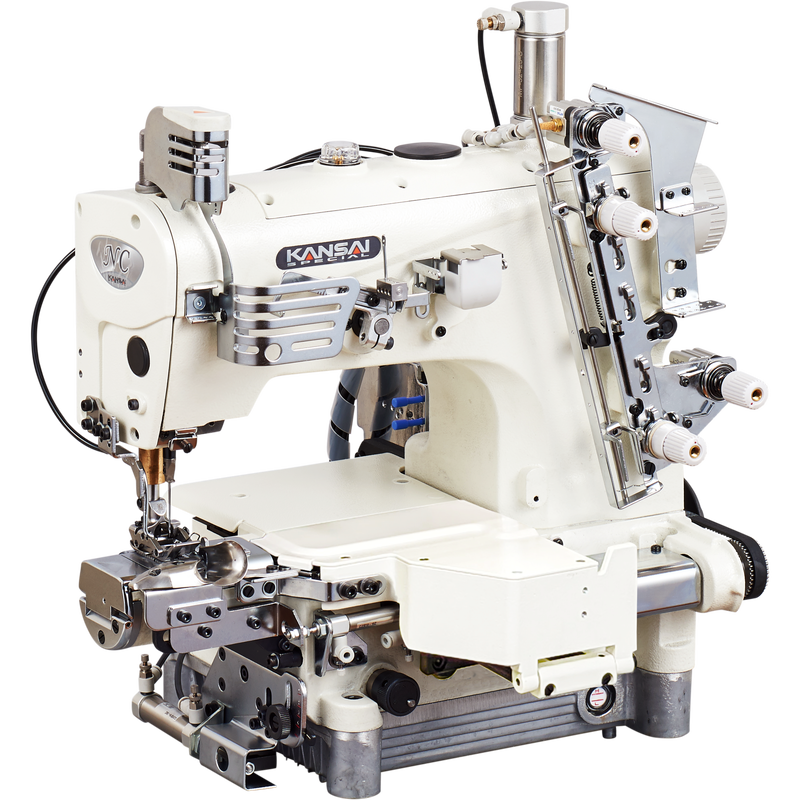

NC1001GSJF-CD-TL1-UTAB

1 needle, small cylinder bed, double chain stitch machine with three plies hemming folder, with front and back plies differential feed dogs
    Max speed 3500rpm
    Needle TV x 5 #21
    Stitch Length 6~11/inch
    Presser Foot Lift 9mm
    Needle Bar Stroke 34mm
    Diff.Feed Ratio 0.8~1.4
    Gauge Size –

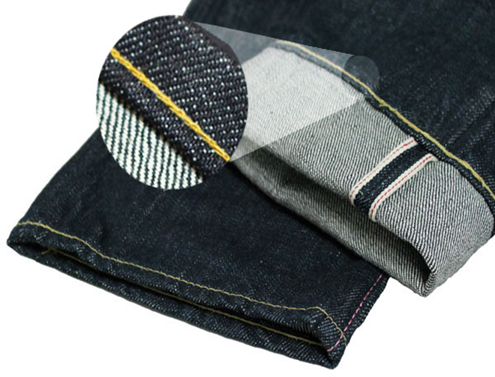

  • Small cylinder bed (circumference 65mm) The use of small cylinder bed and a moveable folder makes the three rolls hemming beautifully.

    Small cylinder bed (circumference 65mm)
    The use of small cylinder bed and a moveable folder makes the three rolls hemming beautifully.

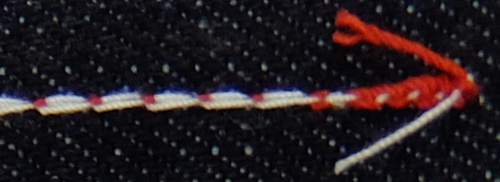

  • Condensed stitch, anti-fray triple lock mechanism (option) Condensed stitching mechanism and triple lock mechanism to reduce fraying from the end of sewing.

    Condensed stitch, anti-fray triple lock mechanism (option)
    Condensed stitching mechanism and triple lock mechanism to reduce fraying from the end of sewing.
