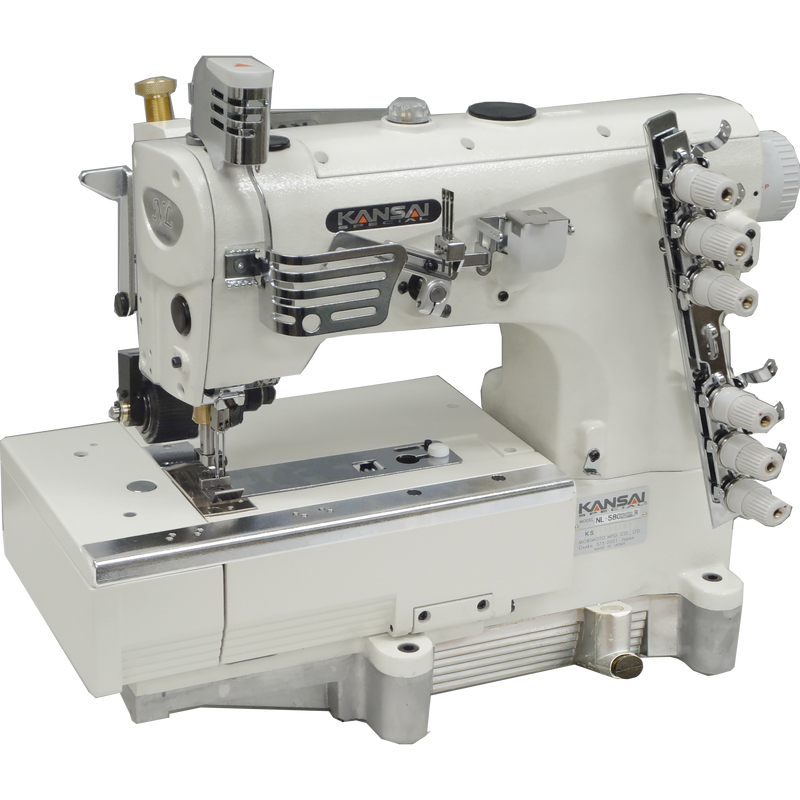

NL5803GPHD

3 needle, flat bed, double chain stitch machine for lap seaming, heavy material with rear puller.
    Max speed 4500rpm
    Needle Type TV x 5 #18
    Stitch Length 6~14/inch
    Presser Foot Lift 8mm
    Needle Bar Stroke 34mm
    Diff.Feed Ratio –
    Gauge Size 1/4,3/8,5/16
    option FL,TB
  • Standard presser foot By adopting the flat presser foot, it can be used for a wide range of puroposes, from plain seaming to lap seaming

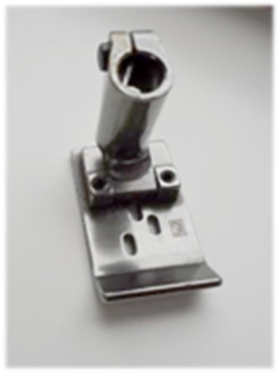

    Standard presser foot
    By adopting the flat presser foot, it can be used for a wide range of puroposes, from plain seaming to lap seaming
