NR9803GALK-UTA

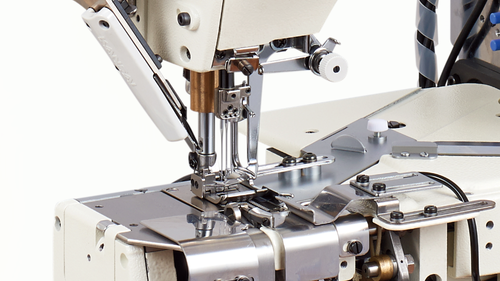

3 needle, cylinder bed, top and bottom cover stitch machine with left side fabric trimmer
(UTAB with air blow)
    Max speed 5500rpm
    Needle UV x 128 #11
    Stitch Length 6~16/inch
    Presser Foot Lift 6mm
    Needle Bar Stroke 33mm (31mm)
    Diff.Feed Ratio 0.3~2.9
    Gauge Size 7/32,1/4

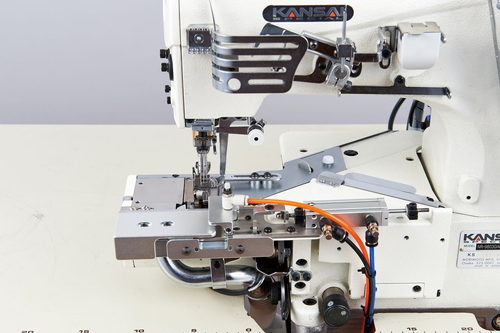

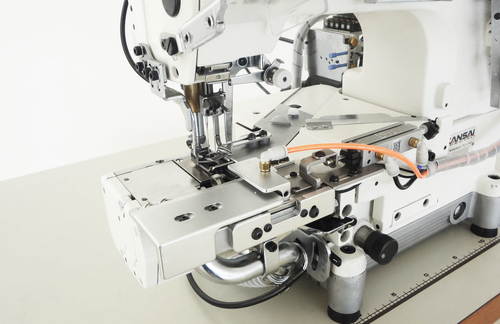

  • ABH-1A Sensor type pneumatic hemming guide can detects the　end of sewing and open folder automatically.

    ABH-1A
    Sensor type pneumatic hemming guide can detects the　end of sewing and open folder automatically.

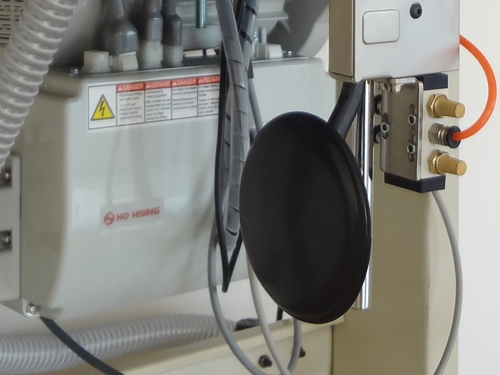

  • ABH-1M Pneumatic hemming guide can operete the opening　and closing folder freely by knee switch.

    ABH-1M
    Pneumatic hemming guide can operete the opening　and closing folder freely by knee switch.

  • ABH-1M

    ABH-1M

Movie
