SQ7702FB-L-TC2

2 needle, feed-off-the-arm square type double chain stitch machine for attaching tape for light to medium material, and guillotine cutter included
    Max speed 5000rpm
    Needle Type UY x 128 #11
    Stitch Length 8~21/inch
    Presser Foot Lift 8mm
    Needle Bar Stroke 31.3mm
    Diff.Feed Ratio 0.7~1.3
    Gauge Size 1/4

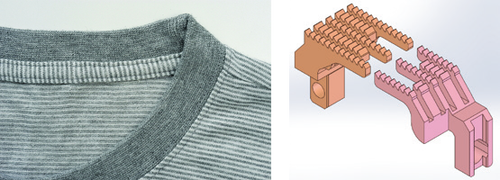

  • Front & back differential feed mechanism & Folder for tape attaching The front & back differential feed mechanism prevents puckering and eliminates tape twisting.

    Front & back differential feed mechanism & Folder for tape attaching
    The front & back differential feed mechanism prevents puckering and eliminates tape twisting.
