SQ7803LR-P

3 needle, feed-off-the-arm square type double chain stitch machine for lap seaming with left and right differential feed and original puller device
    Max speed 4000rpm
    Needle Type #TV x 5 #22
    Stitch Length 6~12/inch
    Presser Foot Lift 10mm
    Needle Bar Stroke 35mm
    Diff.Feed Ratio 0.7~1.3
    Gauge Size 1/4
    option FL,CS4

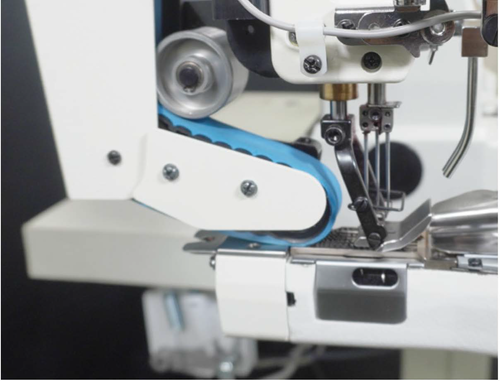

  • Left and Right differential feeding mechanism The left and right independent feed dog reduce sewing slippage and achieve a beautiful finish

    Left and Right differential feeding mechanism
    The left and right independent feed dog reduce sewing slippage and achieve a beautiful finish

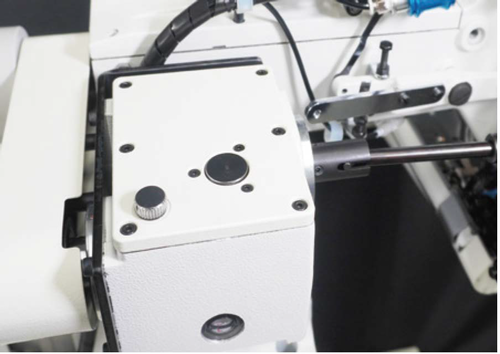

  • Kansai Special original belt puller The original belt puller developed by Kansai Special is used to achienve a powerful and stable fabric feed.Various parts such as the overlap of the joining parts can be finished clearly. The feed amout can be adjusted by push button.

    Kansai Special original belt puller The original belt puller developed by Kansai Special is used to achienve a powerful
    and stable fabric feed.Various parts such as the overlap of the joining parts can be finished clearly.
    The feed amout can be adjusted by push button.
