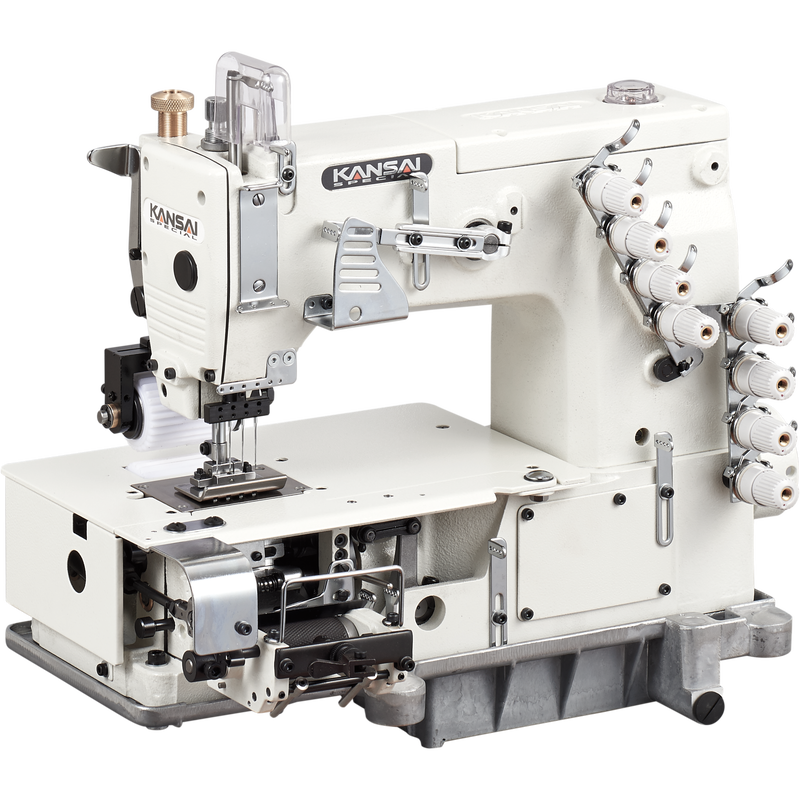

DFB1404PMD

4 needle, flat bed, double chain stitch machine for attaching elastic with gear puller and MD-1
    Max speed 4500rpm
    Needle Type #UO x 113 14
    Stitch Length 8~14/inch
    Presser Foot Lift 10mm
    Needle Bar Stroke 34mm
    Diff.Feed Ratio –
    Gauge Size 3/4,1,1-1/8,1-1/4,1-1/2,1/4-1/2-1/4,1/4-3/4-1/4

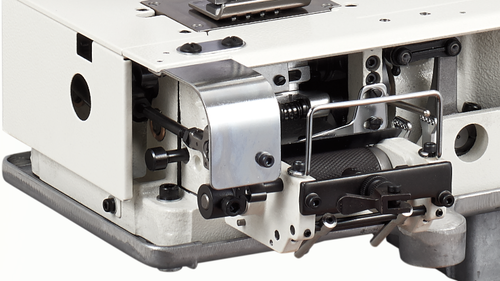

  • MD-1 device Stable elastic feeding is possible with the rubber feeding device.

    MD-1 device
    Stable elastic feeding is possible with the rubber feeding device.
