NC1001GUSJ NC1001GUSJ-CD-TL1-UTAB

1 needle, small cylinder bed, double chain stitch machine with three plies hemming folder, with front and back plies differential feed dogs
    Max speed 2500rpm
    Needle TV x 5 #18
    Stitch Length 6~11/inch
    Presser Foot Lift 8mm
    Needle Bar Stroke 34mm
    Diff.Feed Ratio –
    Gauge Size –
    option CD,TL1

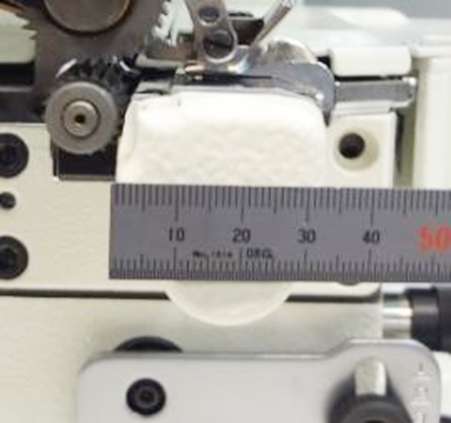

  • Ultra small cylinder bed (circumference 113mm)

    Ultra small cylinder bed
    (circumference 113mm)

  • Condensed stitch, anti-fray triple lock mechanism (option) Condensed stitching mechanism and triple lock mechanism to reduce fraying from the end of sewing.

    Condensed stitch, anti-fray triple lock mechanism (option)
    Condensed stitching mechanism and triple lock mechanism to reduce fraying from the end of sewing.

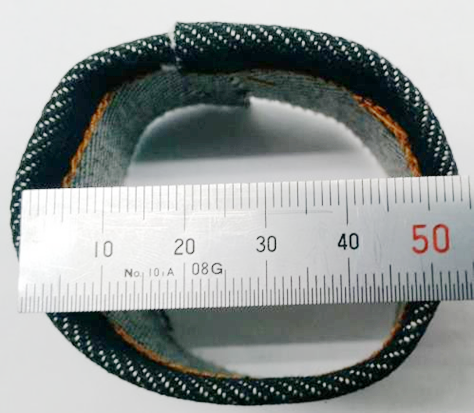

  • Realizing hemming of women's pants and children's pants The use of the ultra small cylinder bed makes it possible to wrap the hem (chain stitch) even smaller. The range of sewing is expanded.

    Realizing hemming of women's pants and children's pants
    The use of the ultra small cylinder bed makes it possible to wrap the hem (chain stitch) even smaller. The range of sewing is expanded.
